Technical Feature

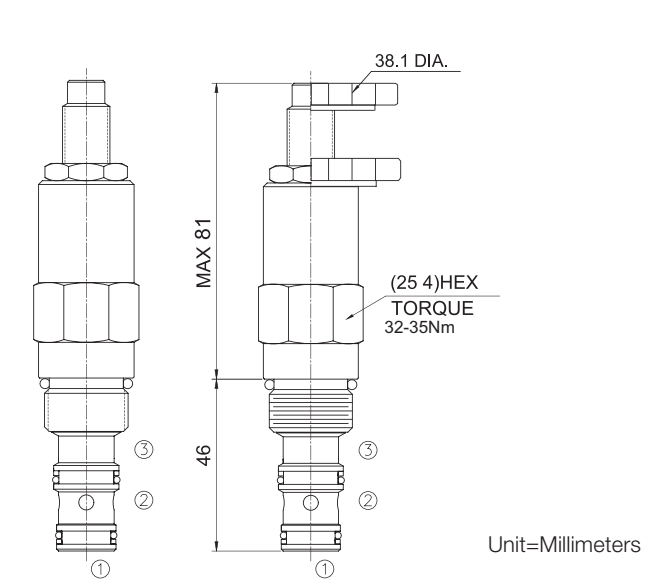

OPERATION:
In its steady state, the valve allows flow to pass from ② to ① ,with the spring chamber
constantly drained at ③． On attachment of a pre-determined pressure at ① , the
cartridge shifts to restrict input flow at ② , thereby regulating pressure at ① . -
PerformanceCurves
-
Technical Data
Operating Pressure207BarFlowSee PRESSURE DROP VS.FLOW graph.Cavity10-3FiltrationRefer to "Cleanliness of Hydraulic Fluid"Internal Leakagefrom②to③ 82 cc/min max. at 85% of Cracking PressureStandard Spring Ranges6.9-27.6 bar, preset:13.5bar
10.3- 103 bar, preset: 51bar
27.6- 207 bar, preset: 103barTemperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body Material6061-T6 aluminum alloy rated to 207bar, Steel & Ductile iron rated to 350bar -
