Cartridge valve
Pressure Valves
- Relief Valves
- Relief Valves Reducing Valves Sequence Valves Pilot Unloading Valves
LRVEA
PDF DownloadDescription

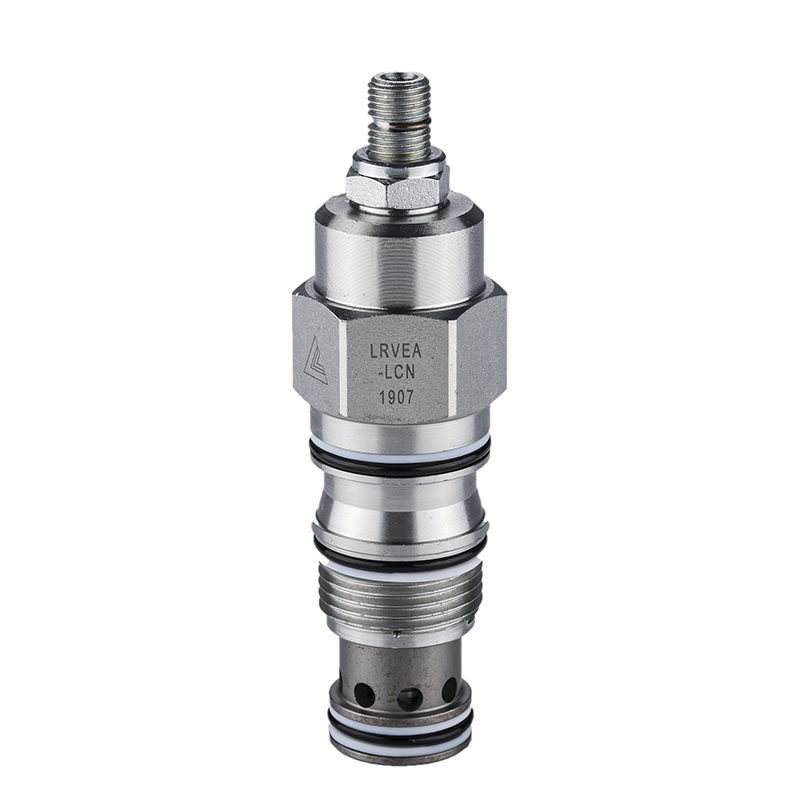

A cartridge-style ventable, pilot operated, balanced piston relief valve
SYMBOL
Up all
Pack up all
-

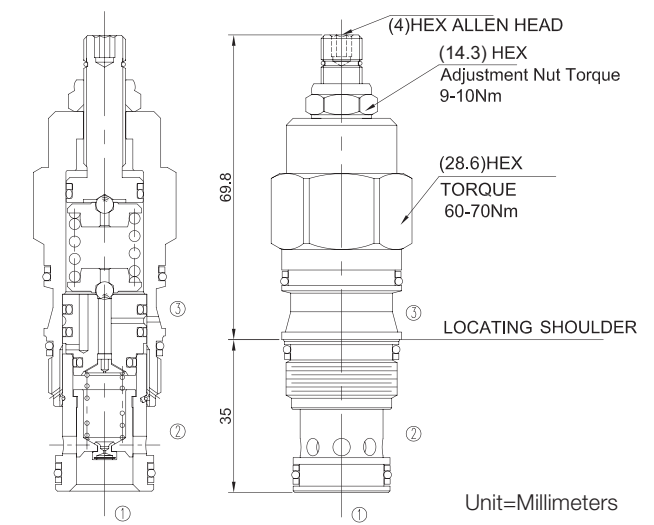

Technical Feature
OPERATION:
The valve is normally closed pressure regulating valves. When the pressure at the inlet
(port ① ) reaches the valve setting, the valve starts to open to tank (port ② ), throttling
flow to regulate the pressure. They provide a vent port (port ③) that connects between
the main piston and pilot stage to provide for remote control by other pilot or 2-way
valves. These valves are accurate, have low pressure rise vs. flow, they are smooth
and quiet, and are moderately fast. -

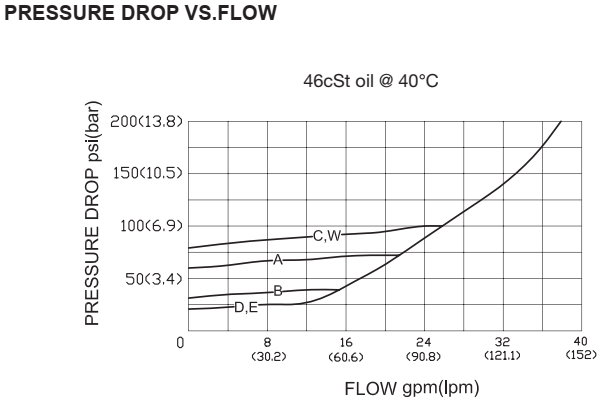

PerformanceCurves
-

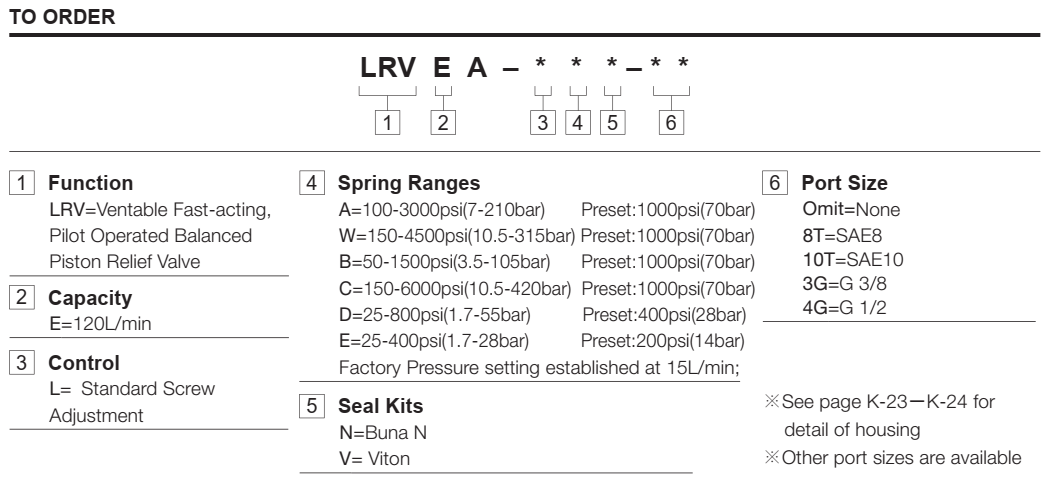

Technical Data
Operating Pressure350barFlowSee PRESSURE DROP VS.FLOW graph.CavitySUN T-2AFiltrationRefer to "Cleanliness of Hydraulic Fluid"Internal Leakage50 cc/min Max. at 70bar.Standard Spring RangesA 7-210 bar; Preset:70bar
W 10.5-315 bar; Preset:70bar
B 3.5-105 bar; Preset:70bar
C 10.5-420 bar; Preset:70bar
D 1.7- 55 bar; Preset:28bar
E 1.7- 28 bar; Preset:14barTemperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body MaterialSteel & Ductile iron rated to 350bar -
