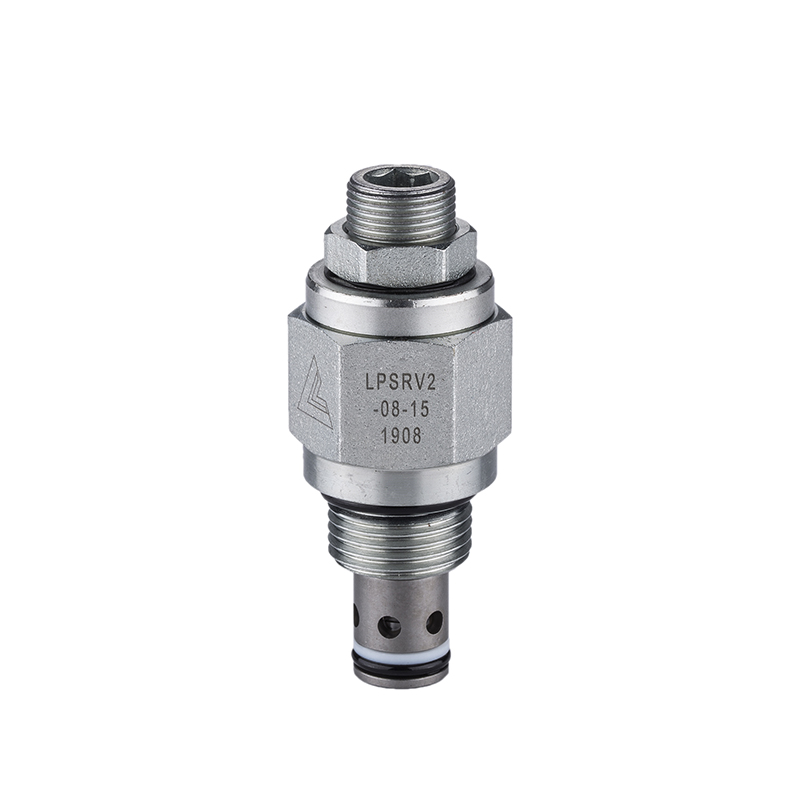

Cartridge valve
Pressure Valves
- Relief Valves
- Relief Valves Reducing Valves Sequence Valves Pilot Unloading Valves
Up all
Pack up all
-

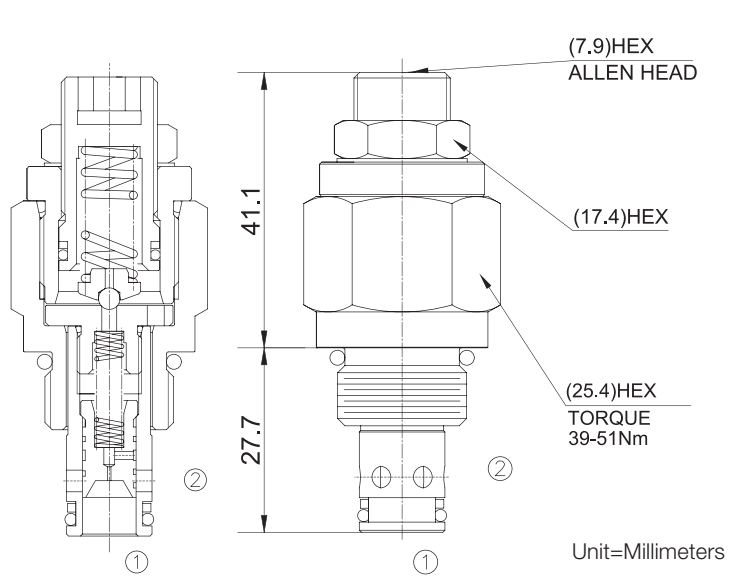

Technical Feature
OPERATION:
The valve prevents flow from ① to ② until pressure at ① exceeds the set Cracking
Pressure and opens the pilot section. The pilot flow creates a pressure differential
across the spool which causes the valve to open allowing flow from ① to ② protecting
the circuit from over pressurization. This cartridge relief valve offers a smooth transition
in response to a load change in a hydraulic circuit. -

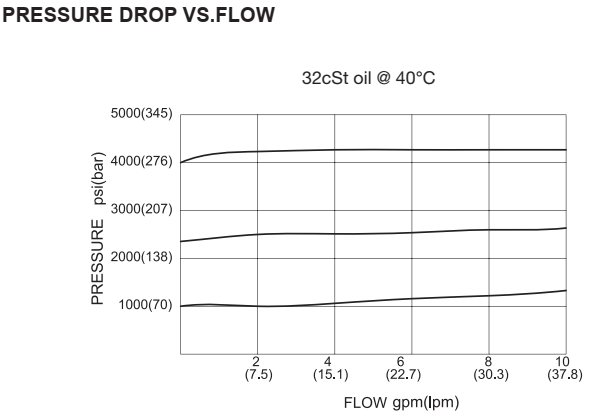

PerformanceCurves
-

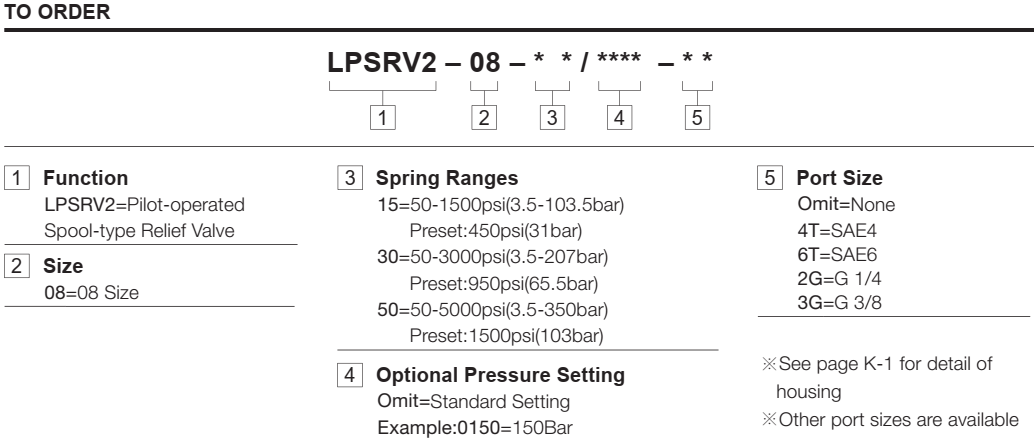

Technical Data
Operating Pressure350BarFlowSee PRESSURE DROP VS. FLOW graph.Cavity08-2FiltrationRefer to "Cleanliness of Hydraulic Fluid"Internal Leakage82cc/min max. to 90% of nominal setting pressureStandard Spring Ranges3.45bar to 103.5bar, preset: 31bar
3.45bar to 207bar, preset: 65.5bar
3.45bar to 350bar, preset: 103barTemperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body MaterialSteel & Ductile iron rated to 350bar -
