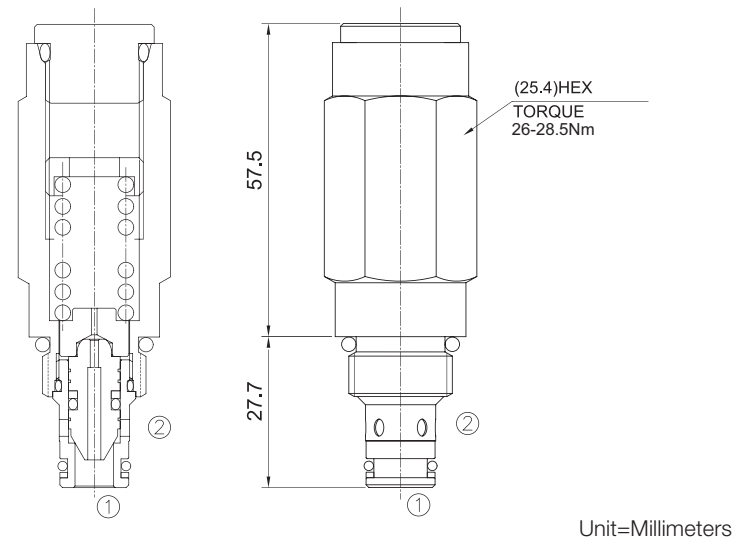

A cartridge-style direct-acting differential area poppet-type relief valve

Technical Feature

OPERATION:
The valve blocks flow from ② to ① until sufficient pressure is present at ② to force the
poppet from its seat.
PerformanceCurves
Technical Data

Operating Pressure
250Bar

Flow

See PRESSURE DROP VS.FLOW graph.

Cavity

08-2

Filtration

Refer to "Cleanliness of Hydraulic Fluid"

Internal Leakage
5 drops/min. max. to 80% of nominal setting

Reseat Pressure
80% of cracking pressure (cracking pressure at 0.95 lpm /0.25 gpm)

Standard Spring Ranges
3.45 to 27.59 bar, preset:13.8bar
10.34 to 48.3 bar, preset: 24bar
17.24 to 89.6 bar, preset: 45bar
17.24 to 227.59 bar; preset:114bar

Temperature
-40°F to +250°F(-40°C to +120°C)

Fluids
Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Body Material
6061-T6 aluminum alloy rated to 207bar, Steel & Ductile iron rated to 350bar
