LPOPRV-10S

PDF Download

Description

A pilot-operated pressure relief valve.

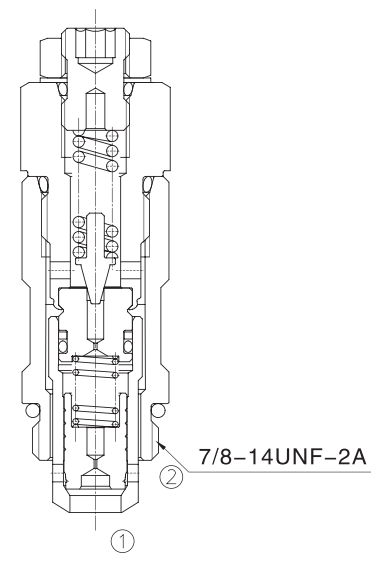

SYMBOL

Contact Us

Up all

Pack up all

  • Technical Data

    Flow
    70L/min
    Cavity
    10S2-2
    Filtration
    Refer to "Cleanliness of Hydraulic Fluid"
    Max.Operating Pressure
    35Mpa
    Torque
    47-54Nm

  • File Download

    PDF File
    LPOPRV-10S
