Cartridge valve
Pressure Valves
- Reducing Valves
- Relief Valves Reducing Valves Sequence Valves Pilot Unloading Valves
Up all
Pack up all
-

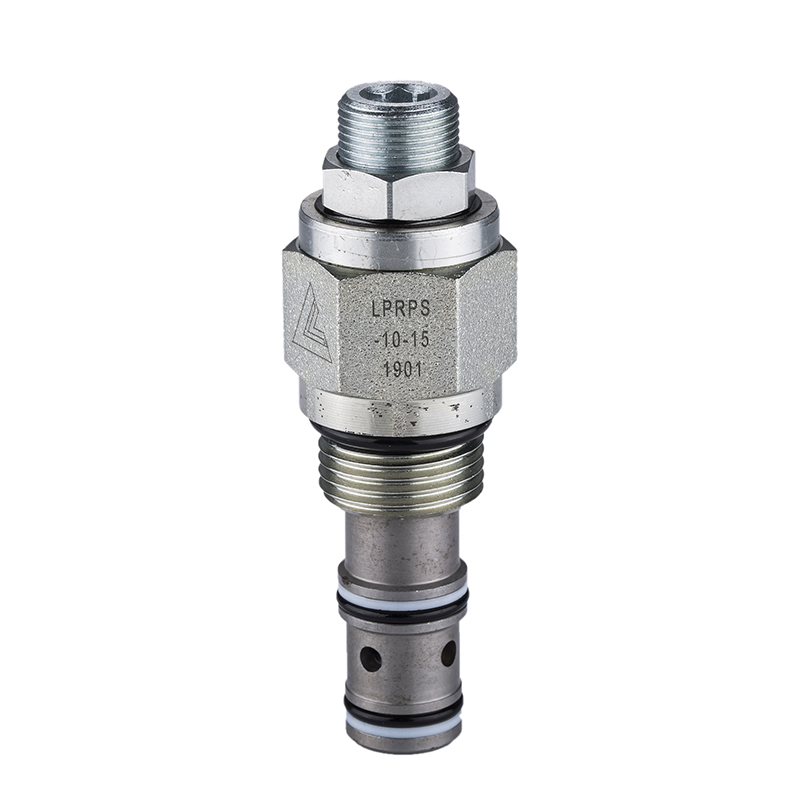

Technical Feature
OPERATION:
In its steady state, the valve allows flow to pass from ② to ① ,with the spring chamber
constantly drained at ③． On attachment of a pre-determined pressure at ① , the
cartridge shifts to restrict input flow at ② , thereby regulating pressure at ① . -

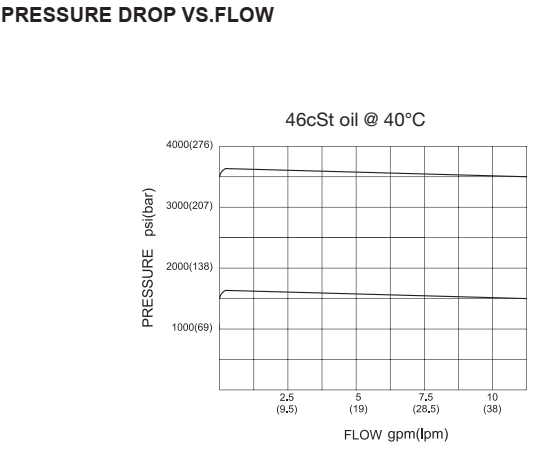

PerformanceCurves
-

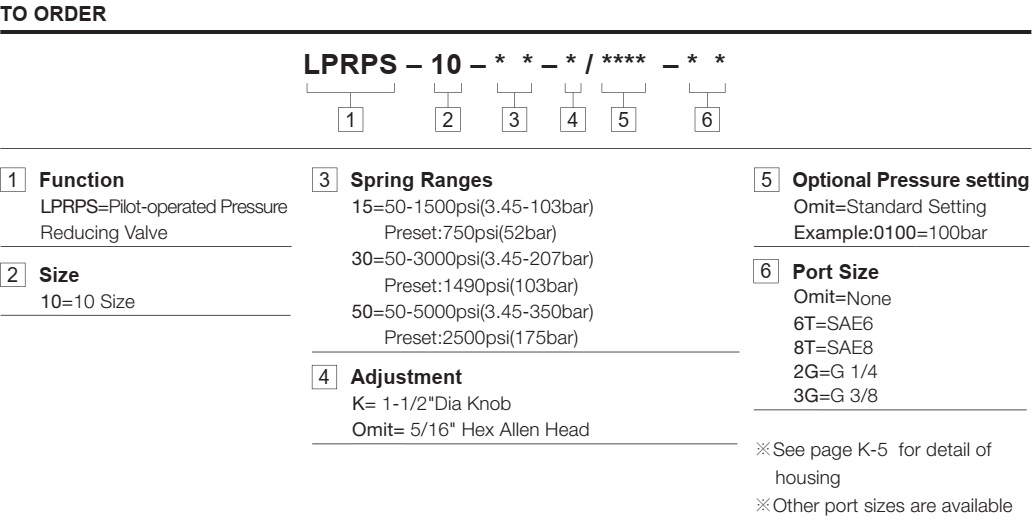

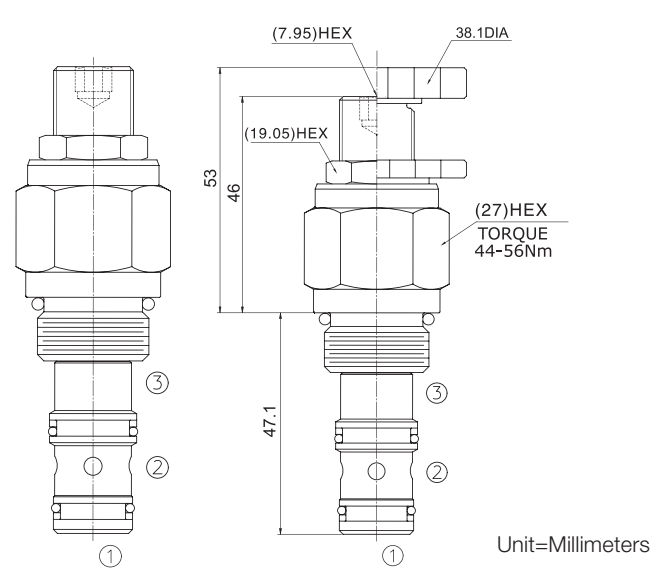

Technical Data
Operating Pressure350BarFlowSee performance chartCavity10-3FiltrationRefer to "Cleanliness of Hydraulic Fluid"Internal Leakagefrom②to③ 82 cc/min max. at 85% of crackStandard Spring Ranges3.45-103 bar, preset: 52bar
3.45-207 bar, preset:103bar
3.45-350 bar, preset:175barTemperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body MaterialSteel & Ductile iron rated to 350bar -
