LPRPS2-10
PDF DownloadDescription

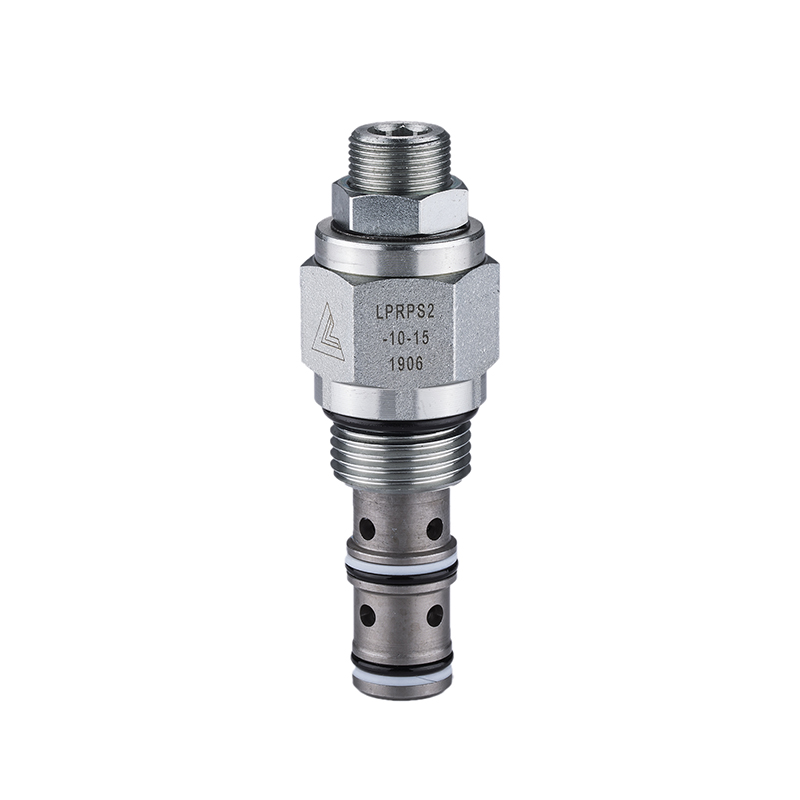

A cartridge-style pilot-operated pressure reducing/ relieving valve
SYMBOL
Up all
Pack up all
-
Technical Feature
OPERATION:
In its steady state, the valve allows flow to pass from ② to ①， with the spring
chamber constantly drained at ③． On attainment of a pre-determined pressure at ① ,
the cartridge shifts to restrict input flow at ② , thereby regulating pressure at ① . In this
mode, the valve will also relieve ① to ③ over the reducing setting. -

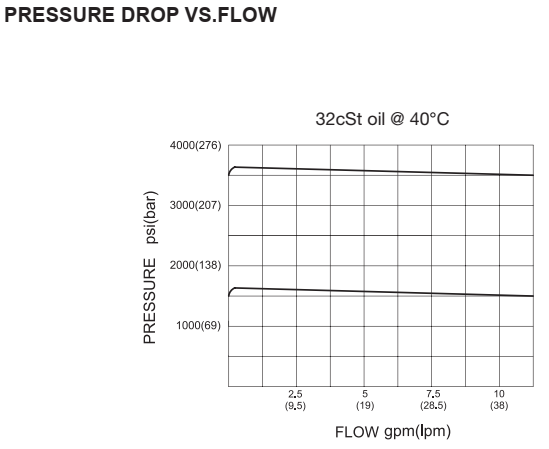

PerformanceCurves
-

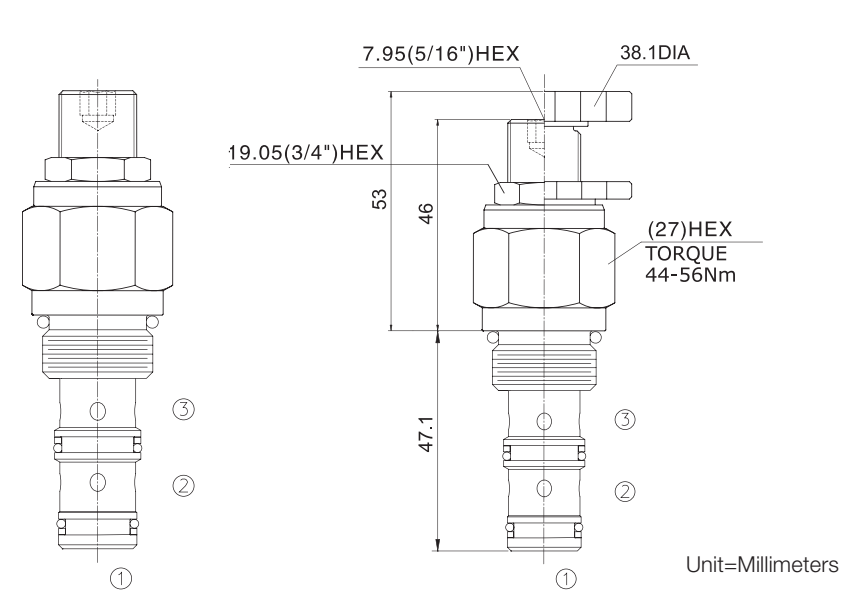

Technical Data
Operating Pressure350BarFlowSee PRESSURE DROP VS.FLOW graph.Cavity10-3FiltrationRefer to "Cleanliness of Hydraulic Fluid"Internal Leakagefrom②to③ 82 cc/min. max. at 85% of crack pressureStandard Spring Ranges3.45-103 bar, preset: 52bar
3.45-207 bar, preset:103bar
3.45-350 bar, preset:175barTemperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body MaterialSteel & Ductile iron rated to 350bar -
