Cartridge valve
Pressure Valves
- Relief Valves
- Relief Valves Reducing Valves Sequence Valves Pilot Unloading Valves
Up all
Pack up all
-

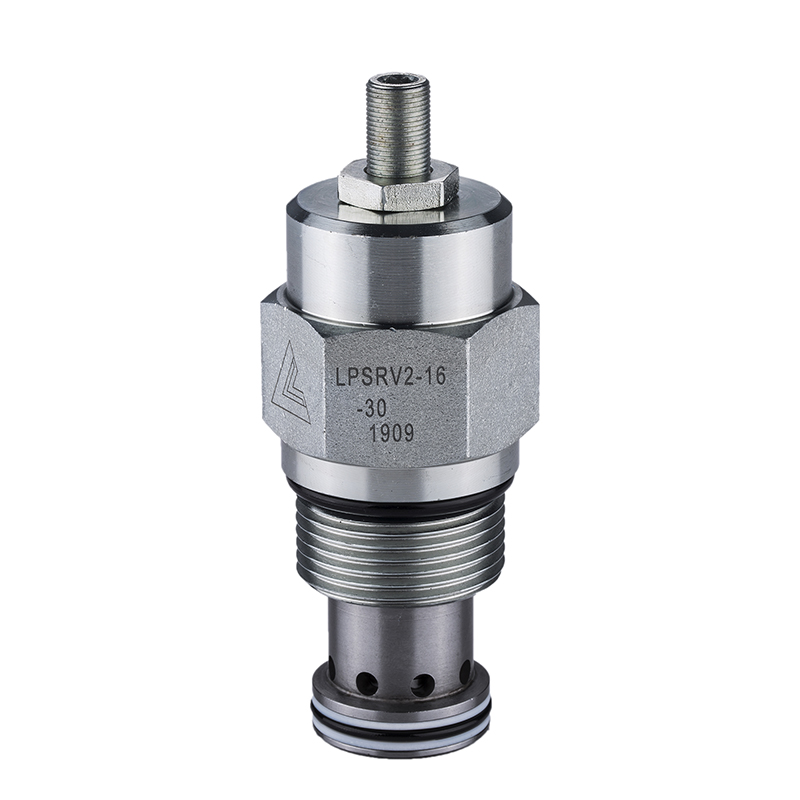

Technical Feature
OPERATION:
The valve prevents flow from ① to ② until pressure at ① exceeds the set Cracking
Pressure and opens the pilot section. The pilot flow creates a pressure differential
across the spool which causes the valve to open allowing flow from ① to ② protecting
the circuit from over pressurization. -

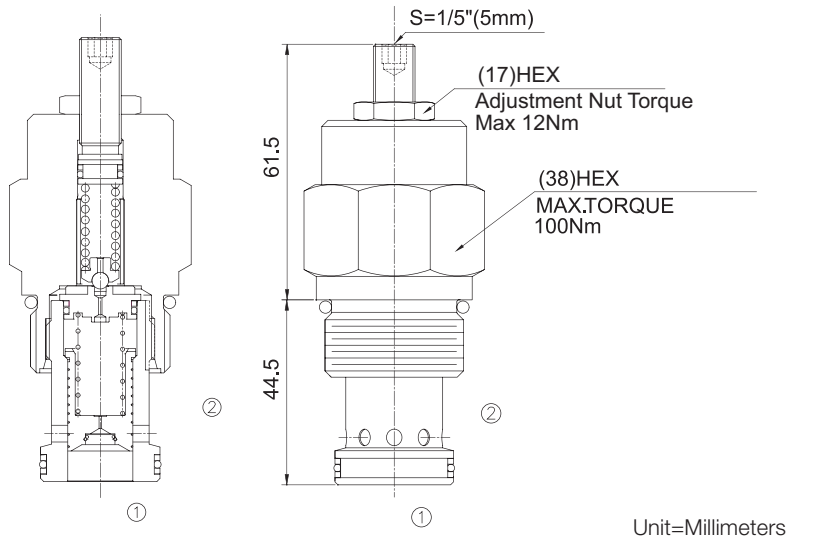

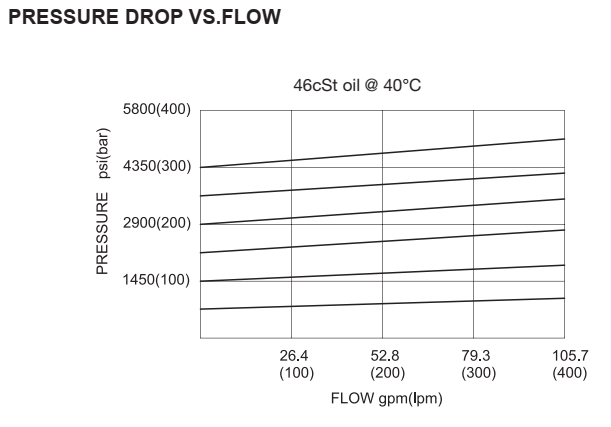

PerformanceCurves
-

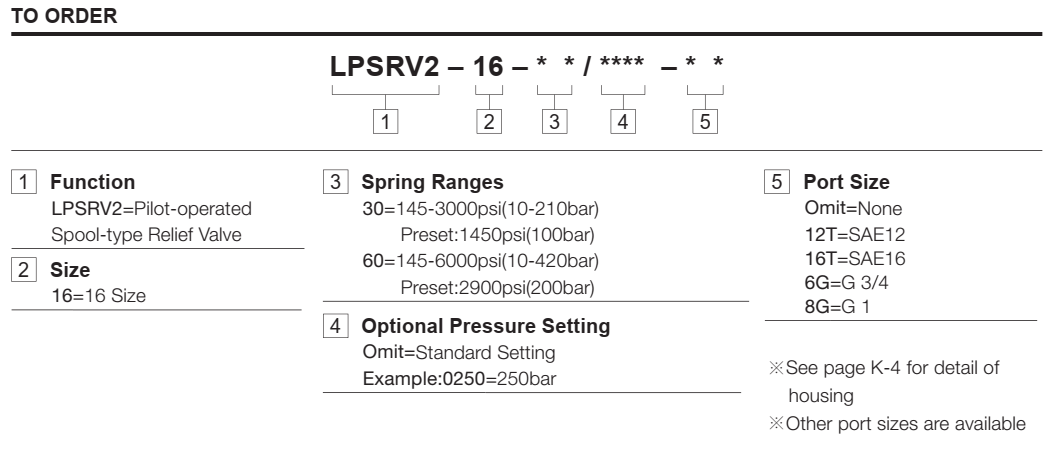

Technical Data
Operating Pressure420BarFlowSee PRESSURE DROP VS.FLOW graph.Cavity16-2FiltrationRefer to "Cleanliness of Hydraulic Fluid"Internal Leakage82 cc/min max. to 80% of nominal settingReseat Pressure85% of cracking pressure(cracking pressure at 0.95 lpm /0.25 gpm)Standard Spring Ranges10-210bar Preset:100bar; 10-420bar :200bar;Temperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body MaterialSteel & Ductile iron rated to 350bar -
