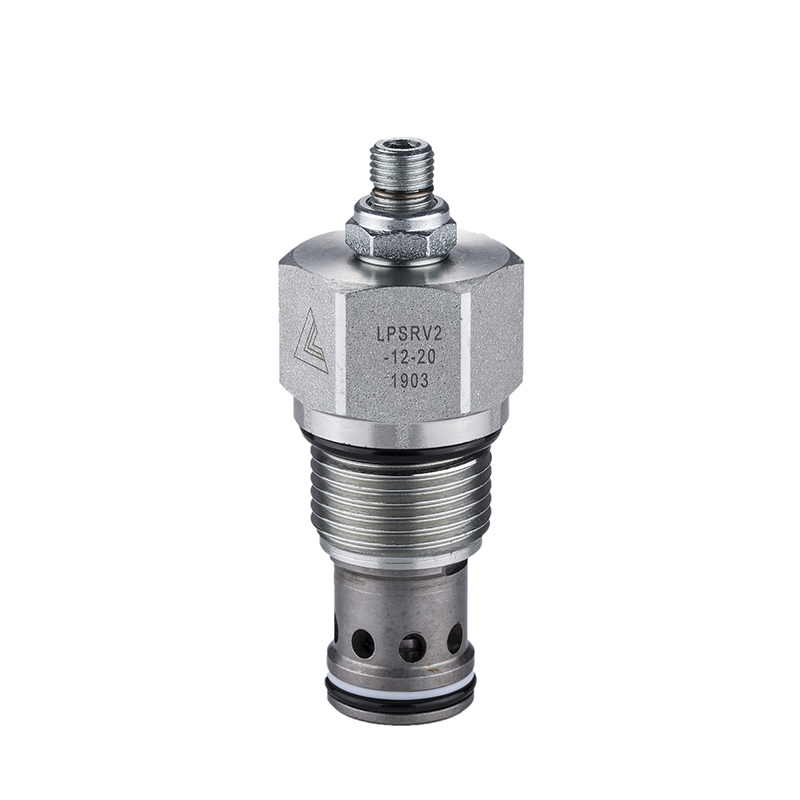

Technical Feature
OPERATION:
The valve prevents flow from ① to ② until pressure at ① exceeds the set Cracking
Pressure and opens the pilot section. The pilot flow creates a pressure differential
across the spool which causes the valve to open allowing flow from ① to ② protecting
the circuit from over pressurization. -

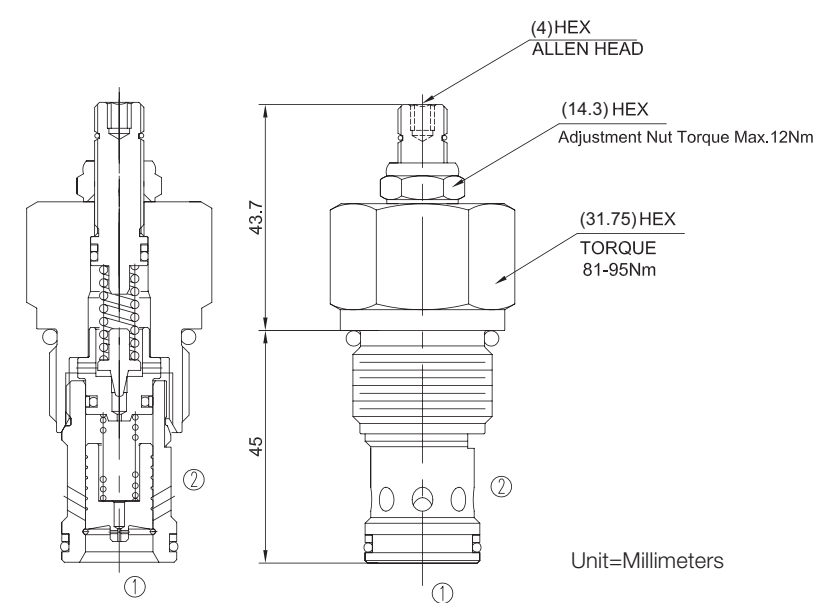

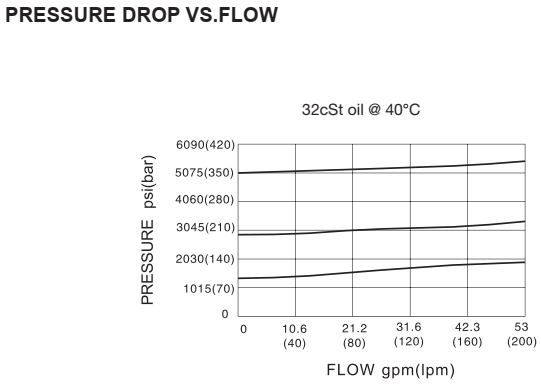

PerformanceCurves
-

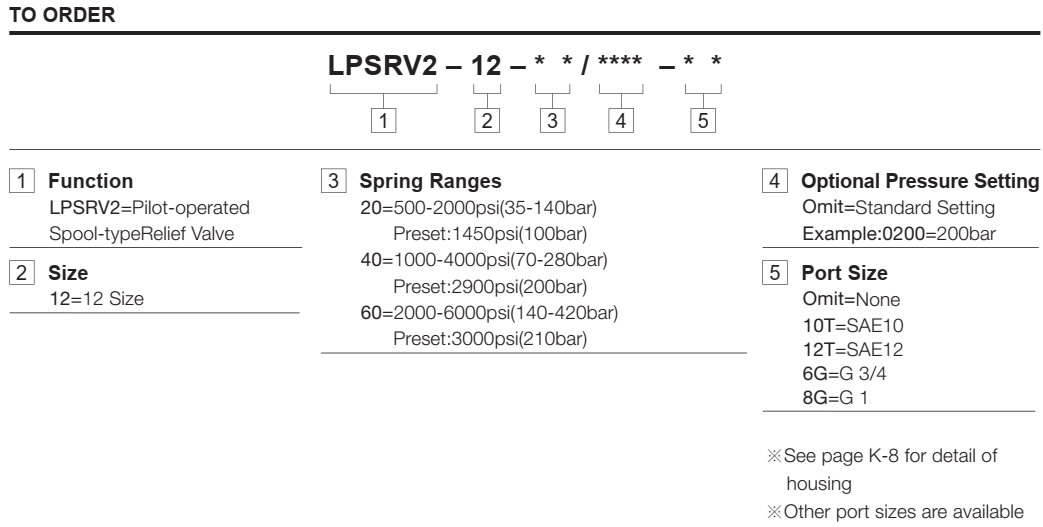

Technical Data
Operating PressurePort①: 420bar；Port②: 140barFlowSee PRESSURE DROP VS.FLOW graph.Cavity12-2FiltrationRefer to "Cleanliness of Hydraulic Fluid"Max.Operating Pressure Port①Port①: 420barMax.Operating Pressure Port②Port②: 140barInternal Leakage170 cc/min max. to 80% of nominal settingReseat Pressure85% of cracking pressure (cracking pressure at 0.95 lpm /0.25 gpm)Standard Spring Ranges35 to 140 bar; preset:100 bar
70 to 280 bar; preset:200 bar
140 to 420 bar: preset:210 barTemperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body MaterialSteel & Ductile iron rated to 350bar -
