Cartridge valve
Pressure Valves
- Relief Valves
- Relief Valves Reducing Valves Sequence Valves Pilot Unloading Valves
Up all
Pack up all
-

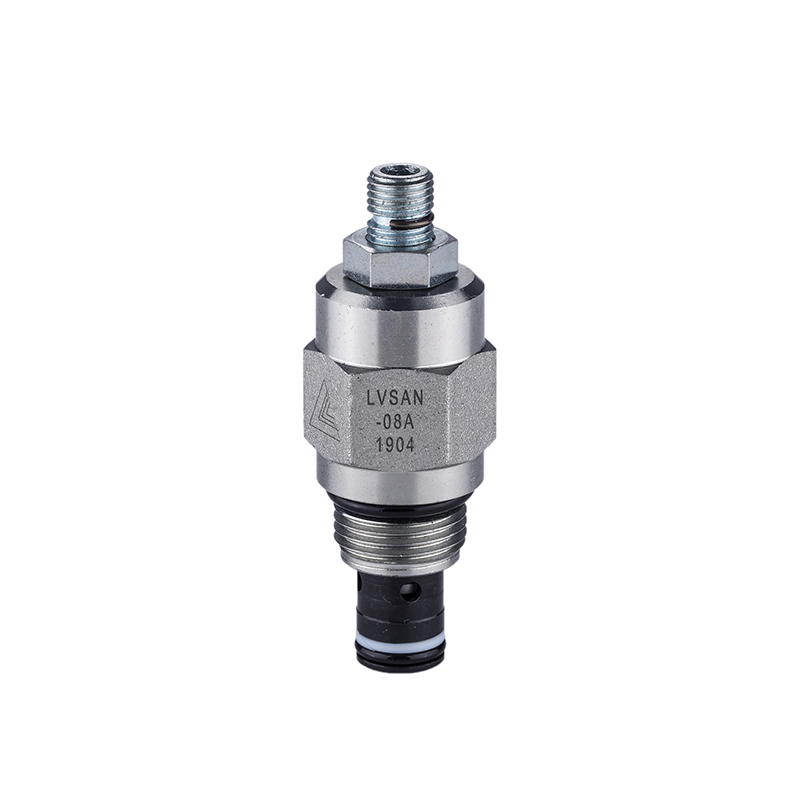

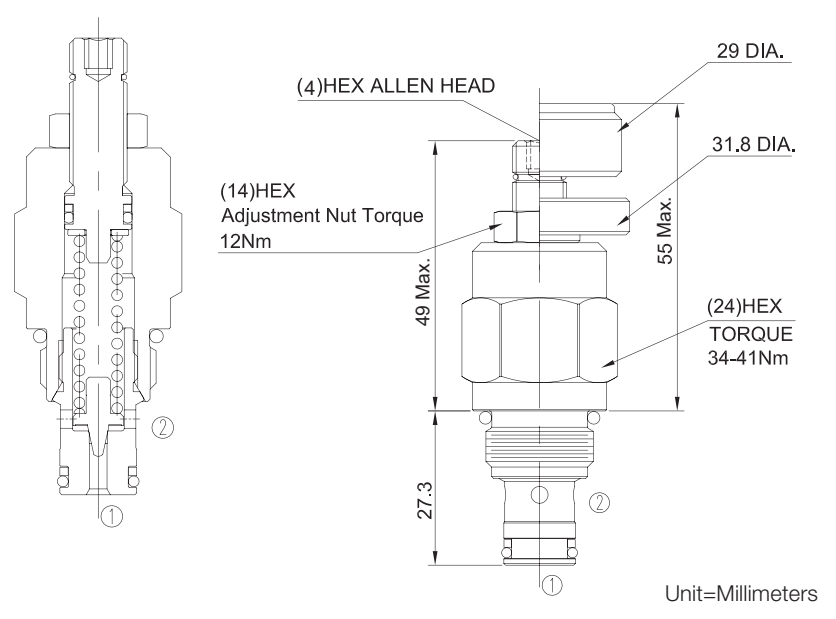

Technical Feature
OPERATION:
Flow is blocked from ① to ② until pressure increases to meet the selected valve
setting, lifting the poppet from its seat and allowing relief flow through port ② to
tank. Pressure at port ② is additive to the relief setting of the valve. The cartridge is
especially suited for pilot or thermal relief applications. -

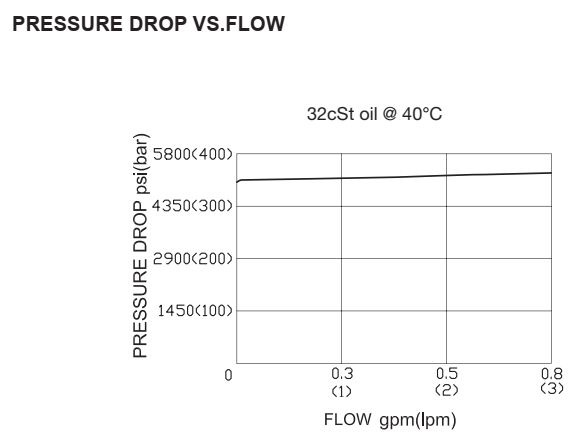

PerformanceCurves
-

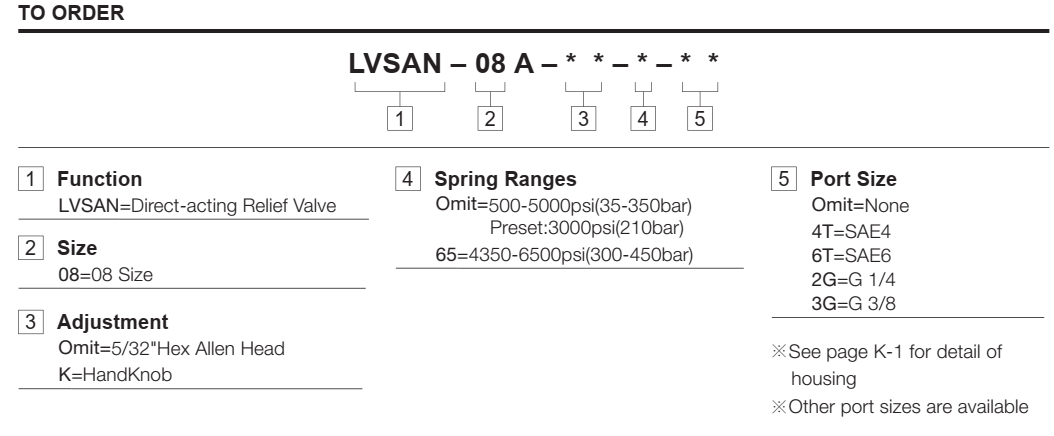

Technical Data
FlowSee PRESSURE DROP VS.FLOW graph.Cavity08-2FiltrationRefer to "Cleanliness of Hydraulic Fluid"Internal Leakage15 drops/min max.Standard Spring Ranges35-350bar;
300-450bar;Temperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body MaterialSteel & Ductile iron rated to 350bar -
