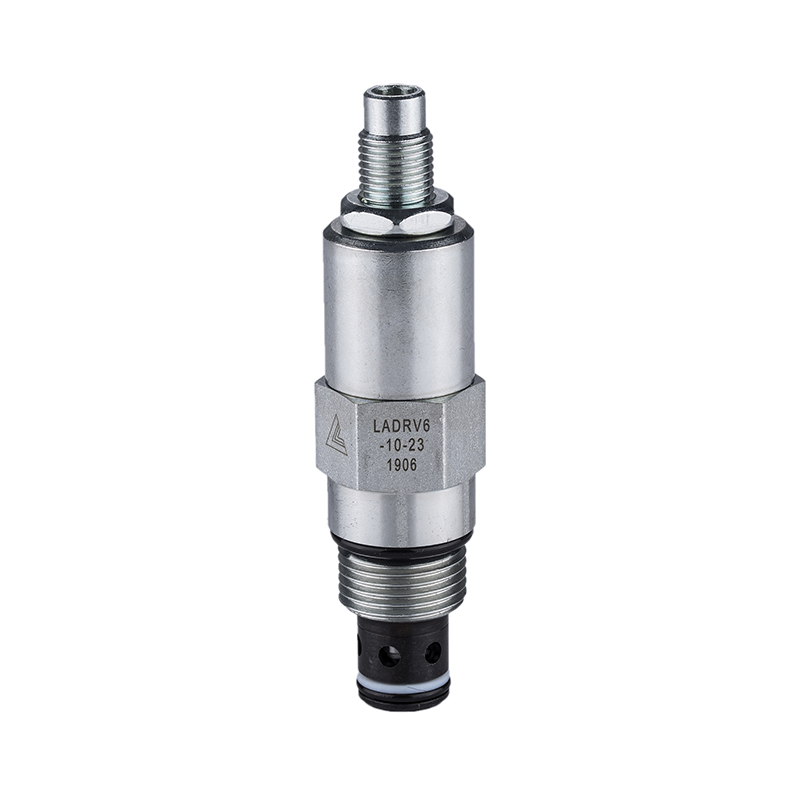

Technical Feature
OPERATION:
The valve prevents flow from ① to ② until the set Cracking Pressure at ① is achieved.
The poppet then unseats allowing flow from ① to ② protecting the circuit from over
pressurization. -
PerformanceCurves
-

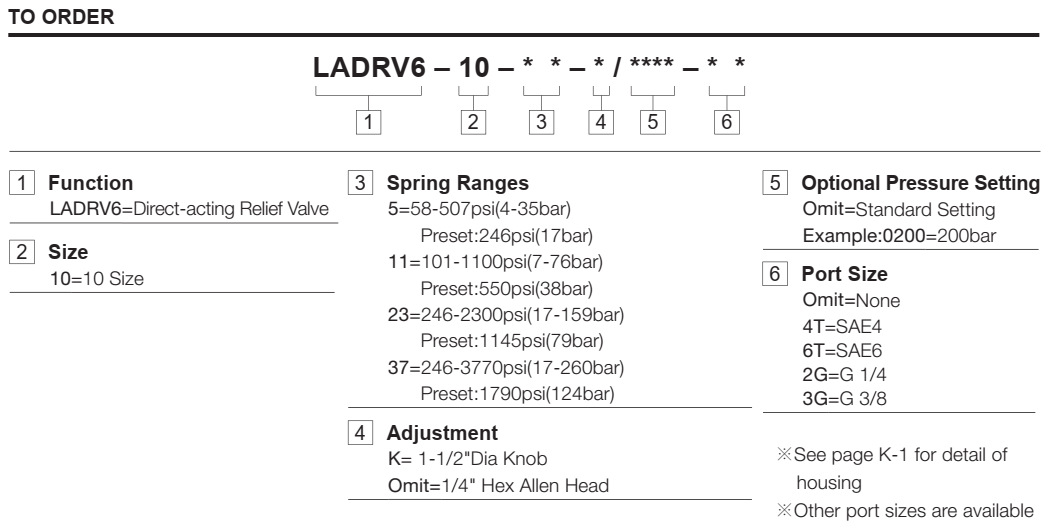

Technical Data
Operating Pressure228BarFlowSee PRESSURE DROP VS.FLOW graph.Cavity10-2FiltrationRefer to "Cleanliness of Hydraulic Fluid"Internal Leakage5 drops/min max. to 80% of nominal settingReseat Pressure80% of cracking pressure (cracking pressure at 0.95 lpm /0.25 gpm)Standard Spring Ranges3.45 to 41.38 bar; preset: 20.7bar
10.34 to 82.76 bar; preset: 41.4bar
17.24 to 158.62 bar; preset: 80.0bar
17.24 to 227.59 bar; preset:113.8barTemperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body Material6061-T6 aluminum alloy rated to 207bar, Steel & Ductile iron rated to 350bar -
