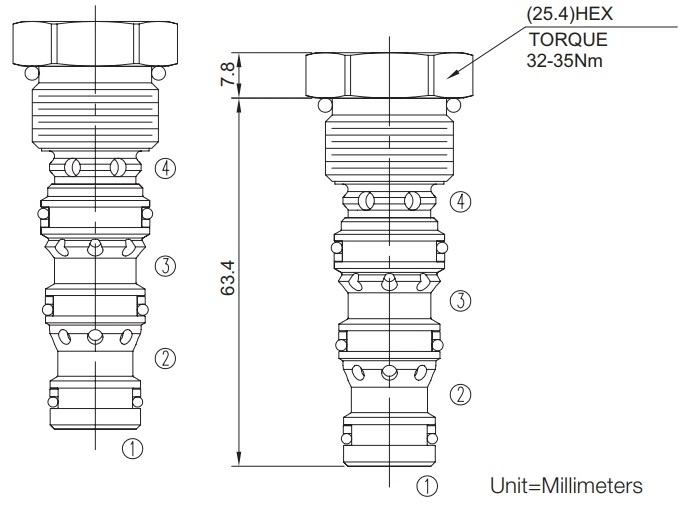

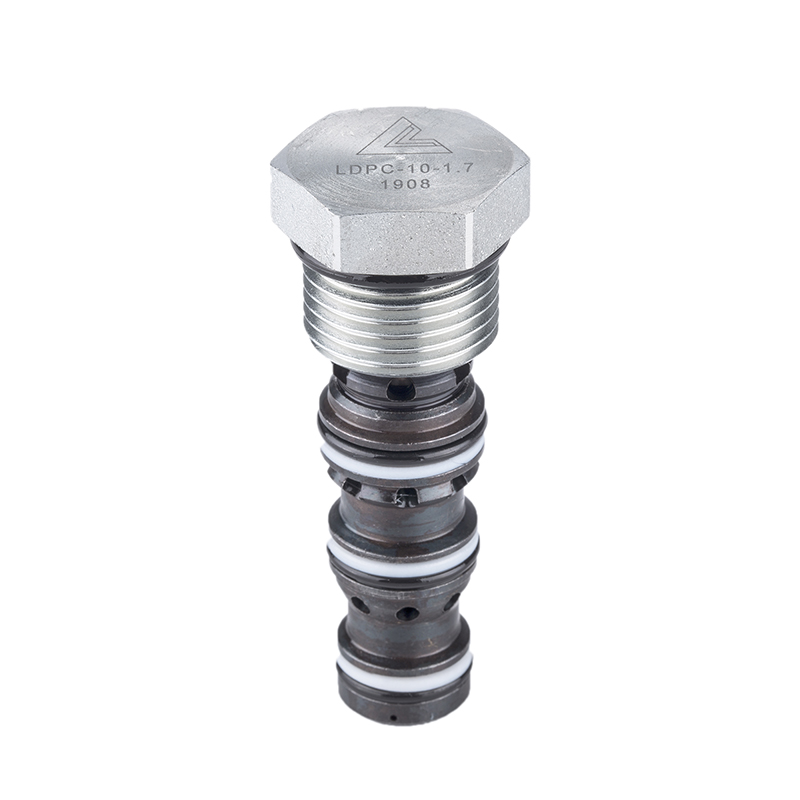

A cartridge-style dual pilotoperated check valve

Technical Feature

OPERATION:
The valve will block flow from ① to ② , and from ④ to ③ . Flow is allowed in the opposite direction when pressure is applied to port ② and/or ③ . The valve has a 3:1 pilot ratio, so at least 1/3 of the load pressure at port ① or ④ is required at the pilot lines (port ③ or ② )to open the flow passage to allow flow from port ① or ④ .

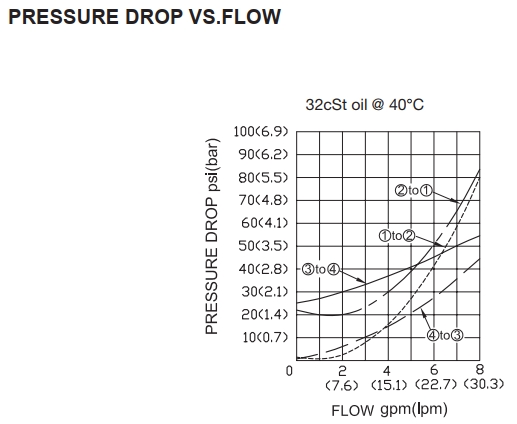

PerformanceCurves
Technical Data

Operating Pressure
240Bar

Flow

See PRESSURE DROP VS.FLOW graph.

Cavity

10-4

Filtration

Refer to "Cleanliness of Hydraulic Fluid"

Internal Leakage
2 drops/min. max. at 240bar

Crack Pressures
1.7=1.7bar

Pilot Ratio
3:1

Temperature
-40°F to +250°F(-40°C to +120°C)

Fluids
Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Body Material
6061-T6 aluminum alloy rated to 207bar, Steel & Ductile iron rated to 350bar
File Download

PDF File

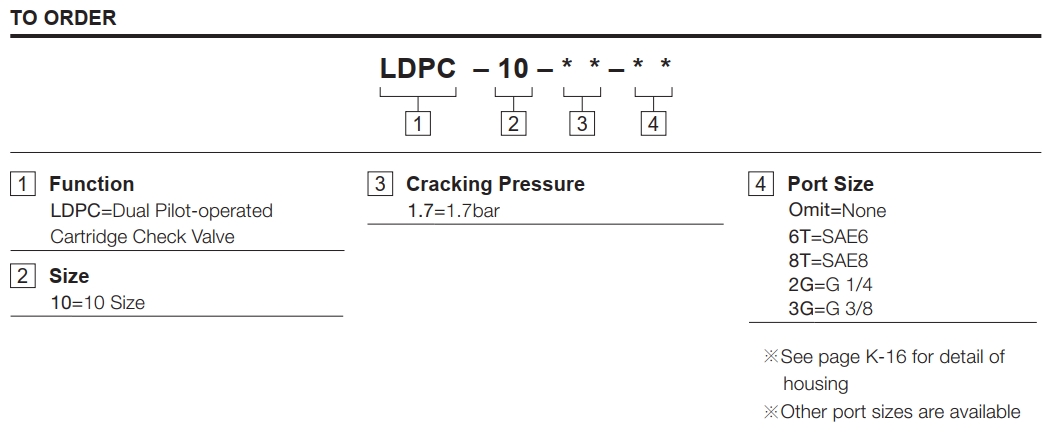

LDPC-10
